Vertical Pump
Vertical Pump

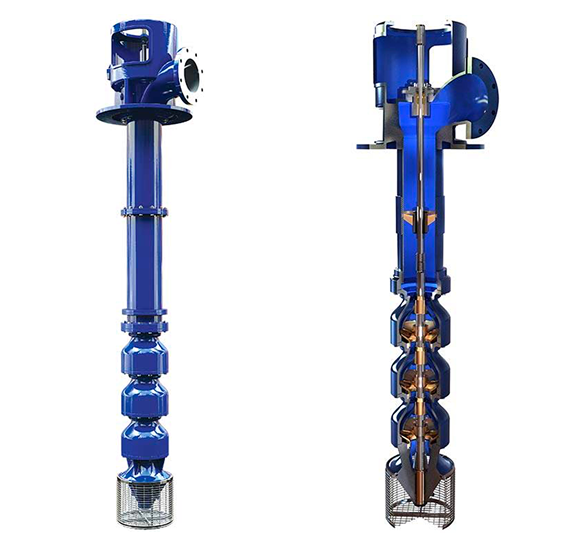

VTP Vertical Turbine Pump
The VTP pump line is normally designed to operate in wells or sumps. Its bowl assembly consists primarily of a suction case or bell, one or more pump bowls and a discharge case. The pump bowl assembly is positioned in the sump or well at a depth to provide the proper submergence.
Operation Limits
| Capacity | up to 13,636 m³/h (60,000 U.S. gpm) |
|---|---|
| Head | up to 762 m (2,500 ft) |
| Maximum Pressure | 74 bar (1,080 psi) |
| Temperature | 0 to 121 ºC (32 to 250 ºF) |
Applications
Deep wells and sumps Agricultural irrigation dewatering
oil & gas production
municipal water supply systems water transfercondensate extraction

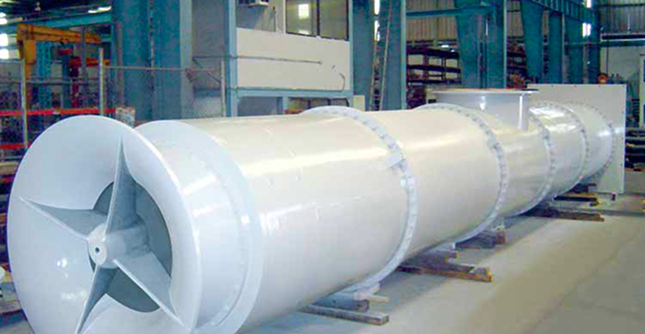

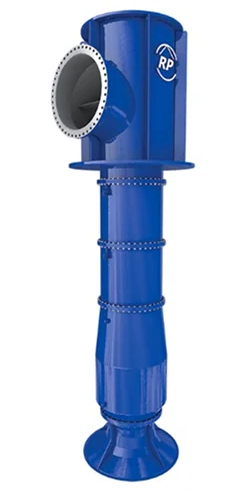

VCT Vertical Circulating Pumps
The VCT product line includes the HX, KX, MX, RX, SX, TR, VMF, VX and WX pump models for Wet Pit Applications.
Operation Limits
| Capacity | up to 68,137 m³/h (300,000 U.S. gpm) |
|---|---|
| Head | up to 100 m (330 ft) |
| Maximum Pressure | up to 20 bar (285 psi) |
| Temperature | -30 °C to 135 °C (-20 °F to 275 °F) |
Applications
Conventional Steam Combined Cycle
Integrated Gasification Combined Cycle Cooling Towers
General Offshore Crude Handling and Treatment Water Injection
Heavy Oil and Upgrading Water Handling and Treatment

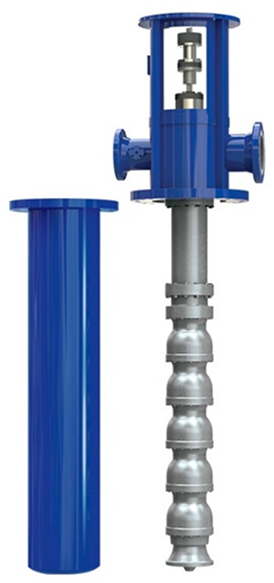

VLT Vertical Process Pump
The VLT is a vertical process pump, available in VS1 and VS6 configuration as defined by API 610
Operation Limits
| Capacity | 100 to 1,600 m³/h (7,000 gpm) |
|---|---|
| Head | up to 1,494 m (4,900 ft) |
| Maximum Pressure | 140 bar (2,020 psi) |
| Temperature | -195 to 565 °C (-320 to 1,050 °F) |
Applications
Petrochemical Plants Power Plants Municipal Hydrocarbons
Pipeline Refineries Offshore Technology Gas Processing Plants
