Submersible
Submersible

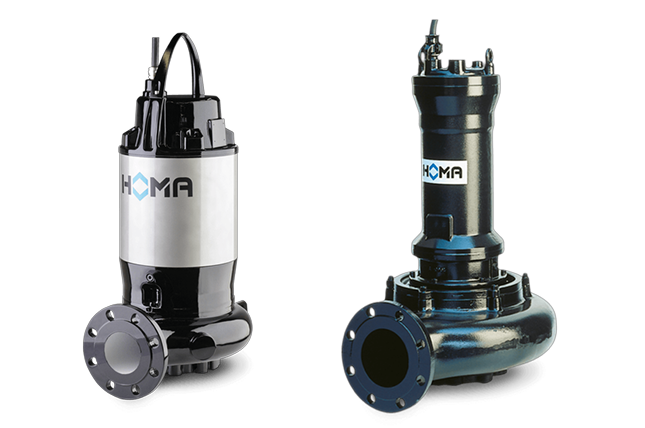

A Series Non-Clog Pumps
Submersible and Dry Pit Wastewater and Sewage Pumps
The HOMA A Series line of non-clog pumps are designed for pumping municipal and industrial wastewater, sewage, effluent, and liquids containing solids and fibers. With single-vane, multi-vane, and vortex impellers available with large solids passages, motors from 3 hp to 500 hp, and FM approved explosion proof variants for operation in hazardous locations, the A Series can fit your pumping needs.
- A wide range of AMS Single-vane, AK and AKX Multi-vane, and AV and AVX Vortex impellers designed for heavy duty operation in municipal and industrial wastewater
- 3 hp to 500 hp motors with Class H insulation
- Available with FM approval for Class 1, Div. 1, Group C & D Hazardous Locations
- Jacketed motors available for dry pit installation
- Temperature and leakage sensors installed as standard

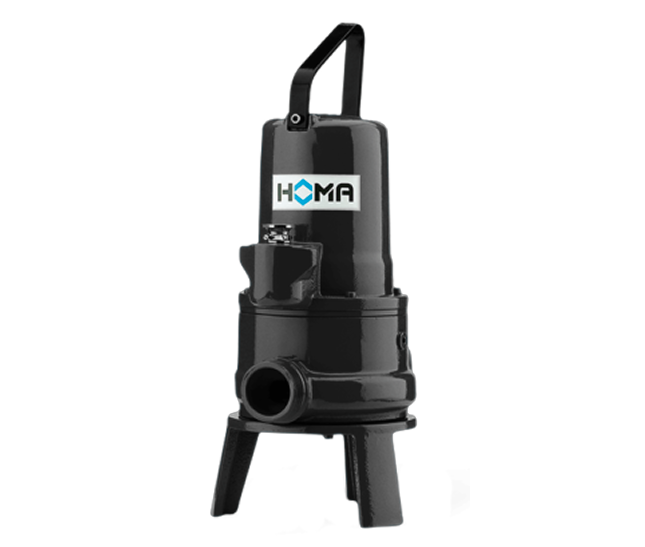

GRP Series Grinder Pumps
Innovative Submersible Pumps with Cutter System
HOMA GRP Series grinder pumps utilize an innovative, hardened cutter system to shred soft solids and stringy materials outside of the pump to prevent clogging. GRP Series pumps are ideally suited for residential, domestic, and municipal wastewater, as well as high-head applications, and are available from 1 hp to 15 hp with optional FM approved explosion proof variants for operation in hazardous locations.
- Innovative, external cutter system hardened to HRC 55 allows solids to fall away from the inlet when the pump is shut off, ensuring free rotation during startup
- 1 hp to 15 hp motors with Class H insulation
- Available with FM approval for Explosion Proof operation in Class 1, Div. 1, Group C & D Hazardous Locations
- Temperature and leakage sensors installed as standard
- A wide range of competitor adapters available for installation in existing sumps

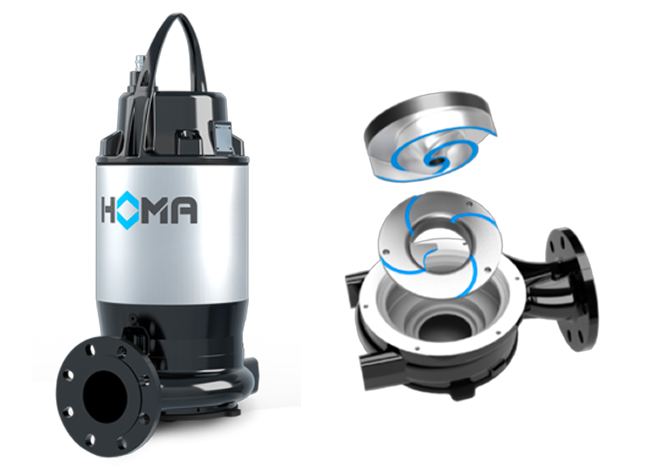

OC Series Chopper Pumps
Submersible Wastewater & Sewage Pumps
The HOMA OC Series of chopper pumps are designed for pumping the most challenging municipal and industrial wastewater, and sewage. The OC impeller uses integrated cutters and high-chrome, white iron hydraulic components to provide superior cutting action, as well as super-high-head performance. All while using the same, proven motors that power the HOMA A Series of solids handling pumps.
- HRC65 white iron cutting system reliably shreds solids in the pumped medium
- Over 260ft TDH high-head performance
- Available with FM approval for Class 1, Div. 1, Group C & D Hazardous Locations
- Jacketed motors available for dry pit installation
- Hydraulic efficiencies up to 65 %

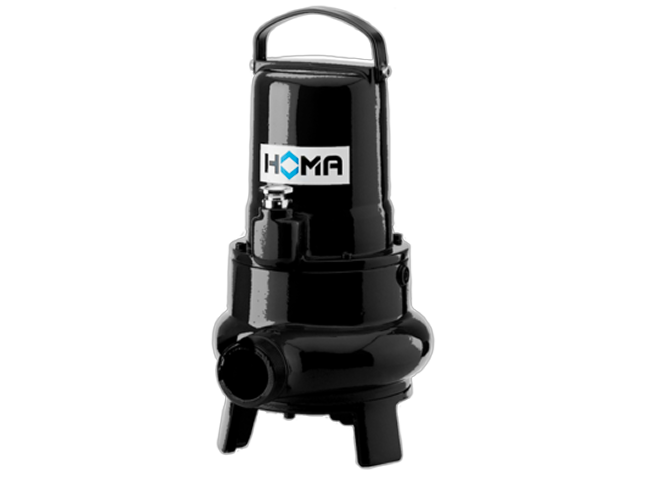

TP Series Wastewater Pumps
High Performance in Waste Water Pumping
The HOMA TP series of effluent pumps is designed for low-flow solids handling in commercial, industrial, and light municipal applications. The TP line is available with either single-vane or vortex impellers from 1 hp to 5 hp with optional FM approved explosion proof variants for operation in hazardous locations
- Designed for pumping effluent, drainage water, and wastewater in commercial, industrial, and light municipal applications
- 1 hp to 5 hp motors with Class H insulation
- Most models available with FM approval for Explosion Proof operation in Class 1, Div. 1, Group C & D Hazardous Locations
