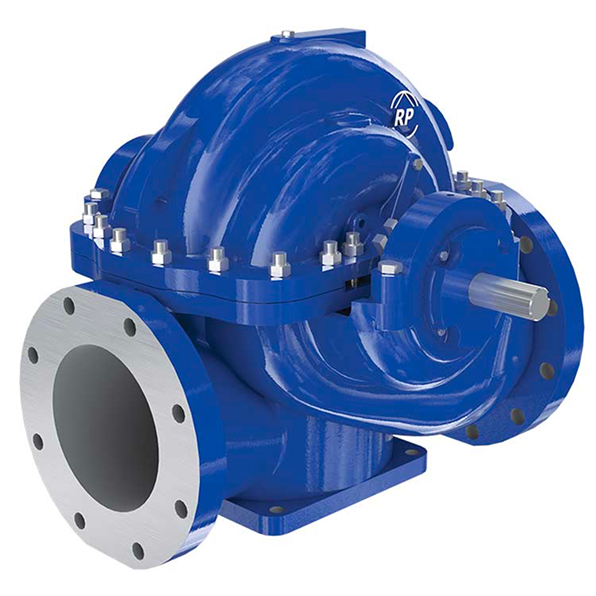

HSC Split Case Pump
The HSC pump is a horizontal, single stage, double volute, axially split case centrifugal pump designed and built according to the Hydraulic Institute (HI) standard (BB1 type).
Operation Limits
| Capacity | up to 31,800 m³/h (140,000 gpm) |
|---|---|
| Head | up to 168 m (550 ft) |
| Maximum Pressure | up to 28 bar (400 psi) |
| Temperature | 10 to 150 °C (50 to 300 °F) |
| Discharge Flanges | sizes 5" to 36" |
Applications
Petrochemical General Industry Power Generation

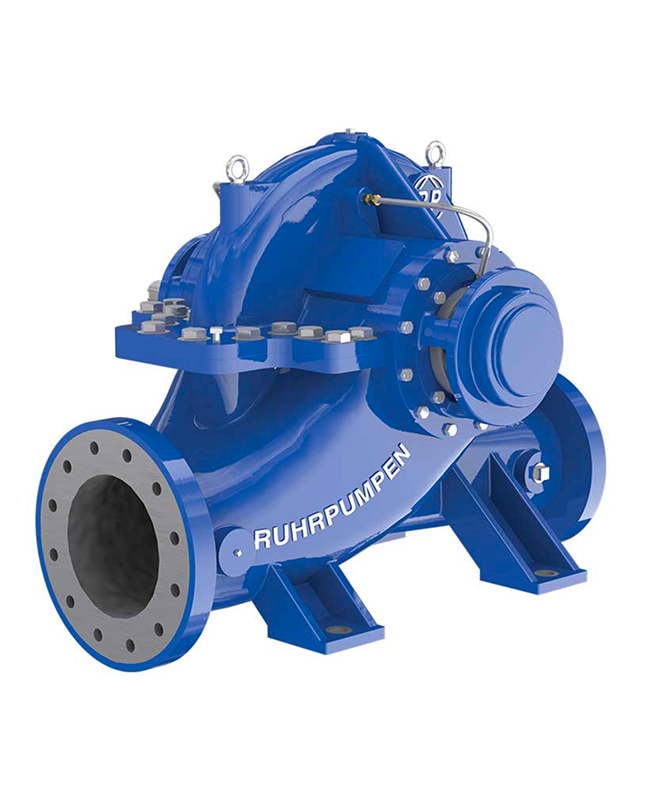

ZW Horizontal Split Case Pump
The ZW pump is a horizontal, single stage, axially split case centrifugal pump designed and built according to the Hydraulic Institute (HI) standard (BB1 type). It is part of the HS/ZW range of split case pumps by Ruhrpumpen which includes the: HSC, HSD, HSL, HSR, and HSM models.
Operation Limits
| Capacity | up to 9,000 m³/h (34,400 gpm) |
|---|---|
| Head | up to 340 m (1,115 ft) |
| Maximum Pressure | up to 98 bar (1,421 psi) |
| Temperature | up to 120 °C (248 °F) |
Applications
Petrochemical General Industry Power Generation

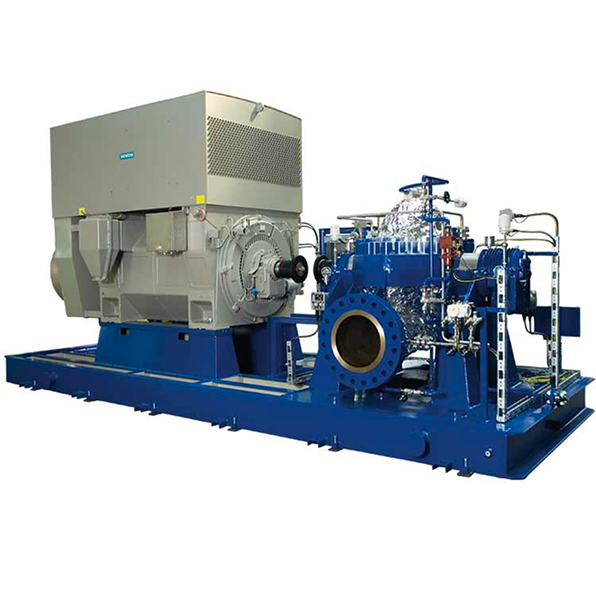

ZM Horizontal Split Case Pump
Operation Limits
| Capacity | 100 to 20,000 m³/h (440 to 88,057 gpm) |
|---|---|
| Head | 10 to 1,200 m (30 to 3,900 ft) |
| Maximum Pressure | up to 145 bar (2,103 psi) |
| Temperature | up to 205 °C (401 °F) |
| Discharge Flanges | sizes 4' to 40' |
Applications
Pipeline services: Mainline and Booster General industry
Oil-extraction technology: on land and offshore
Chemical / Petrochemical industries Metallurgical and steel industries
Combined heating and Power stations

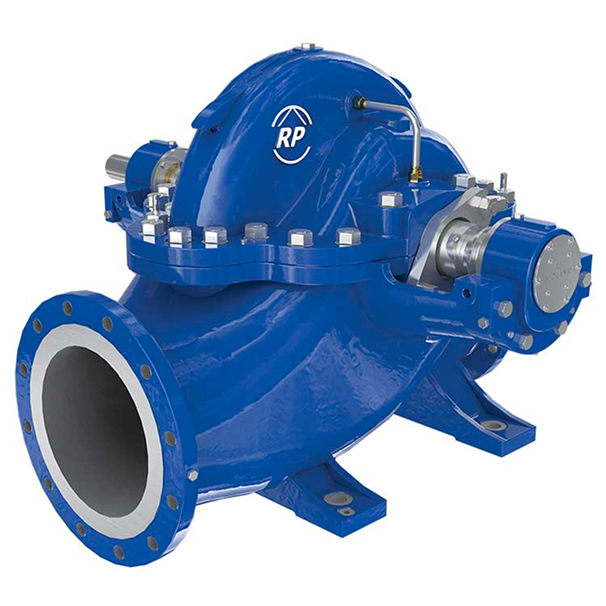

HSD Split Case Pump
The HSD pump is a horizontal, single stage, axially split case centrifugal pump designed and built according to the Hydraulic Institute (HI) standard (BB1 type). It is part of the HS/ZW range of split case pumps by Ruhrpumpen which includes the: HSC, HSL, HSR, HSM and ZW models.
Operation Limits
| Capacity | up to 1,590 m³/h (7,000 gpm) |
|---|---|
| Head | up to 168 m (550 ft) |
| Maximum Pressure | up to 18 bar (250 psi) |
| Temperature | 10 to 120 °C (50 to 250 °F) |
| Discharge Flanges | sizes 1½'' to 12'' |
Applications
Petrochemical general industry applications municipal water systems
municipal water systems Mining Operations fire protection
